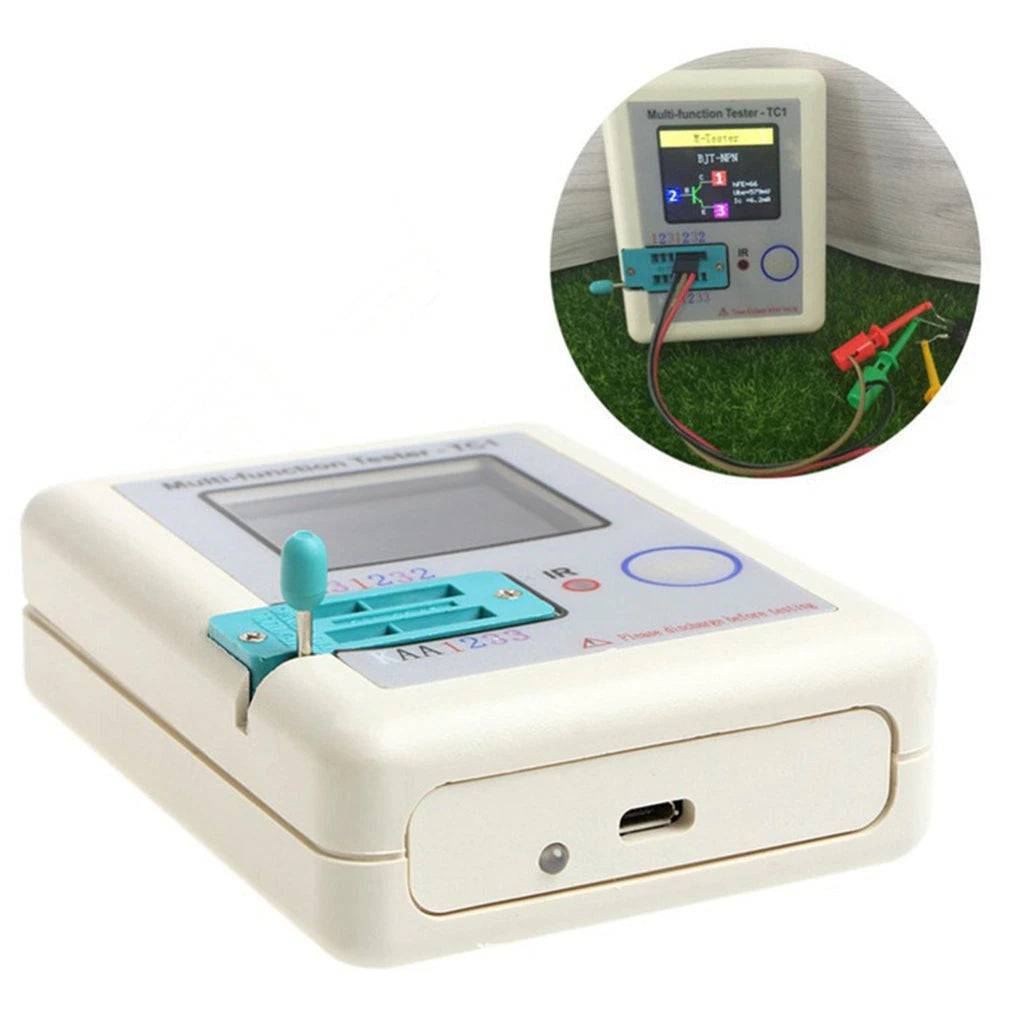

Multifunctional transistor tester LCR-TC1 Full color graphic display With battery TFT Diode Triode Capacitance Meter
Features:
- It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
- One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.
- Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.
Description:
It can also be used to detect infrared wave forms. It also can detect zener diode and has the function of self-calibration.
Specifications:
Display: 1.8 inch TFT Screen
Diode Range: < 4.5V
Zener Diode : Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT < 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery (Include)
Size: Approx. 90 x 50 x 25mm
Color: white

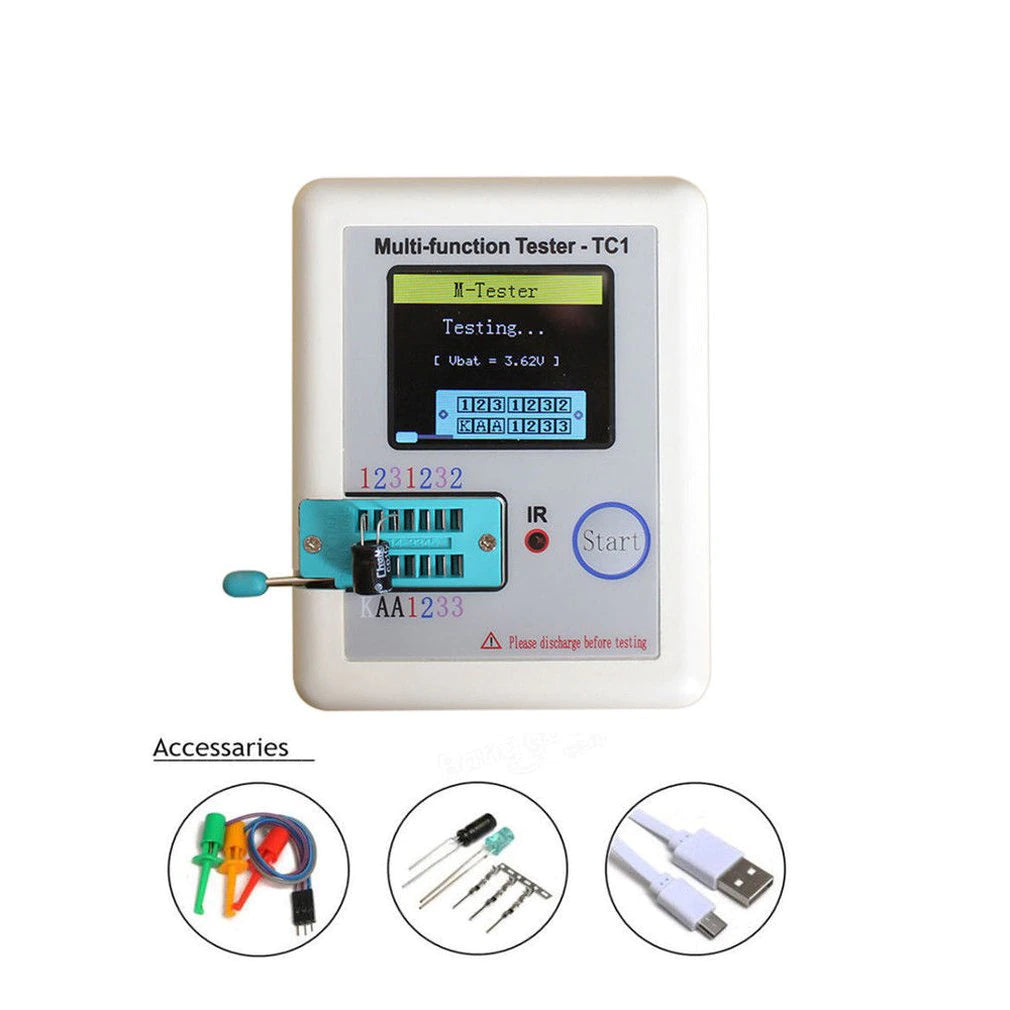

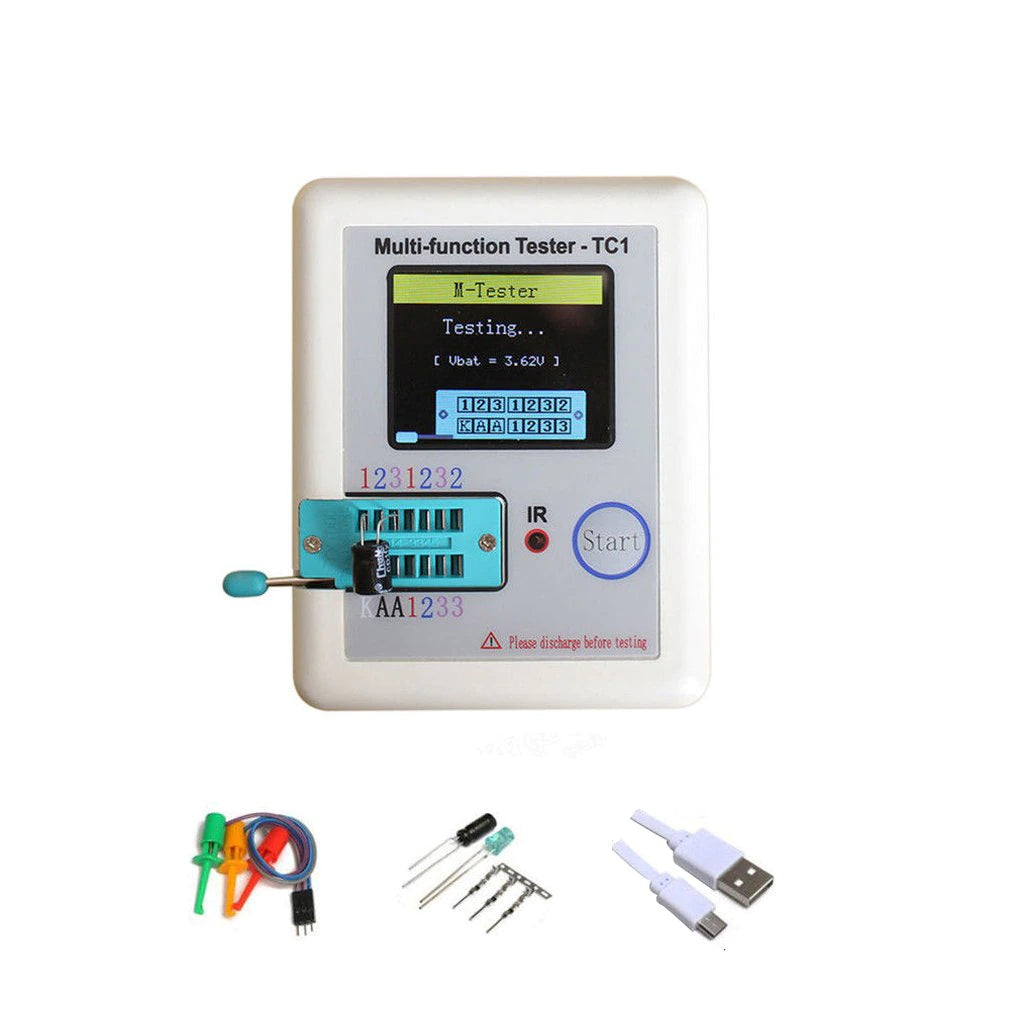

Package Included:
1 x Multi-functional TFT Transistor tester
1 x Electronic component set(Send Randomly)
3 x Test hooks
1 x Cable
