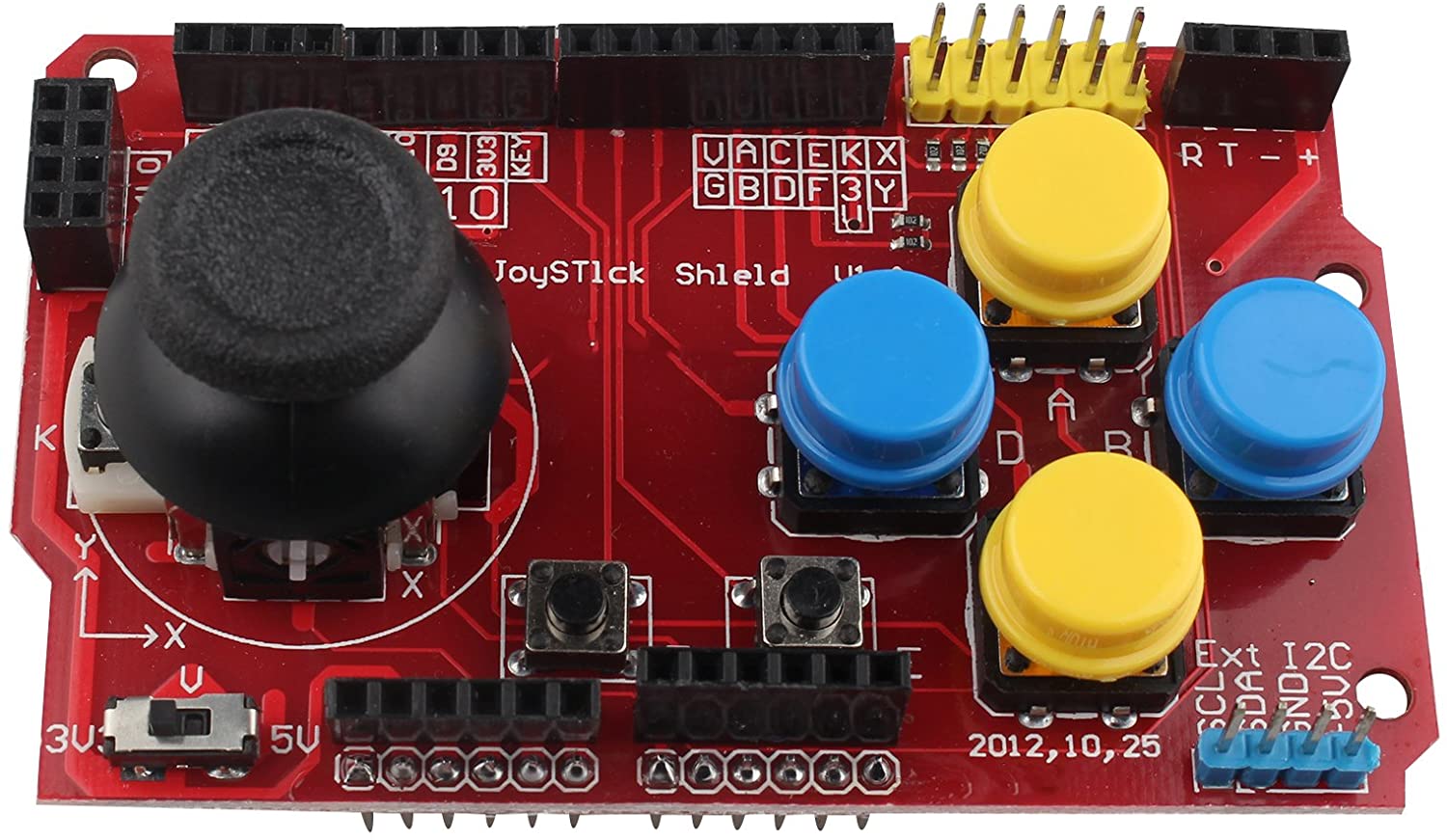

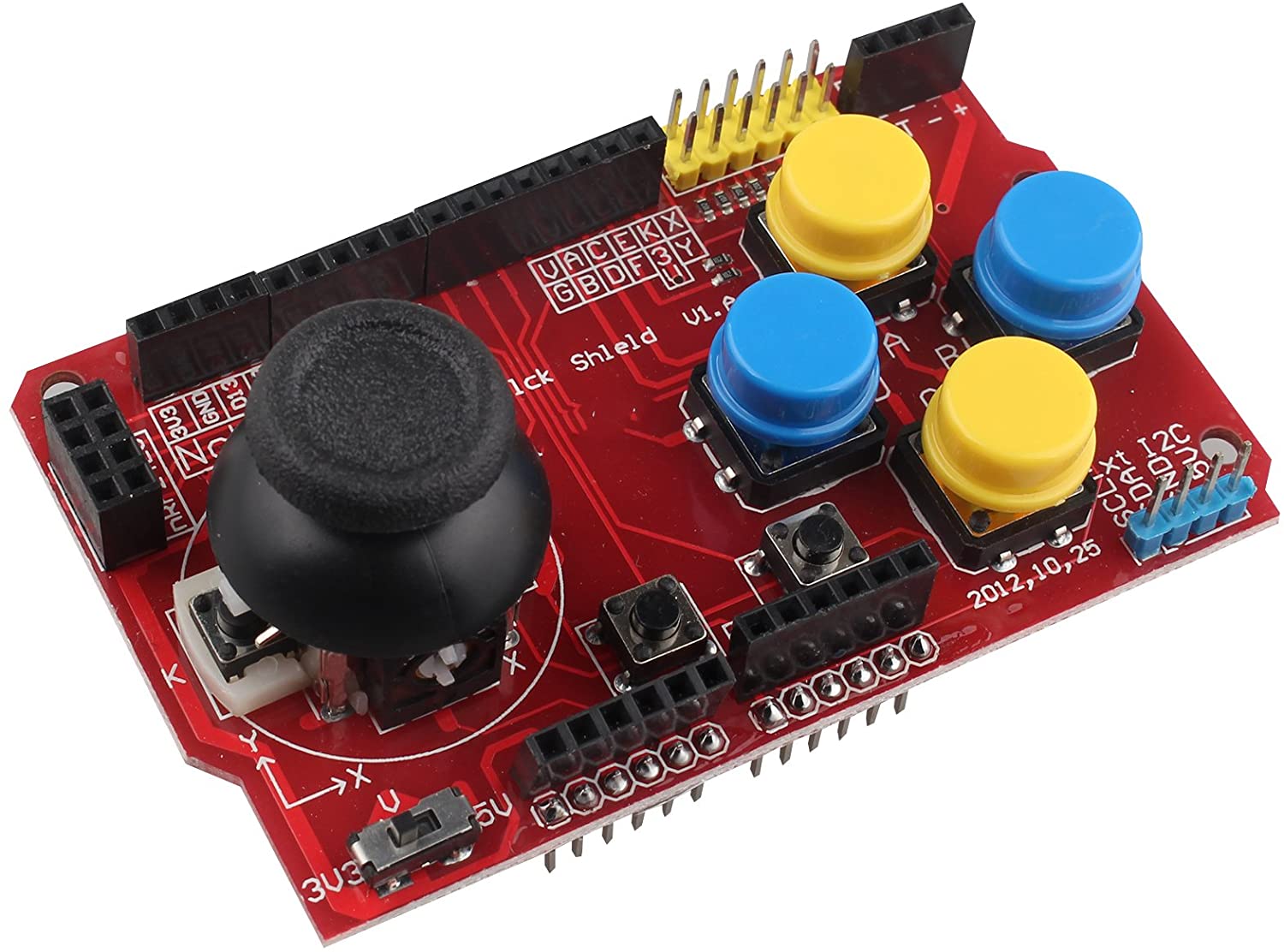

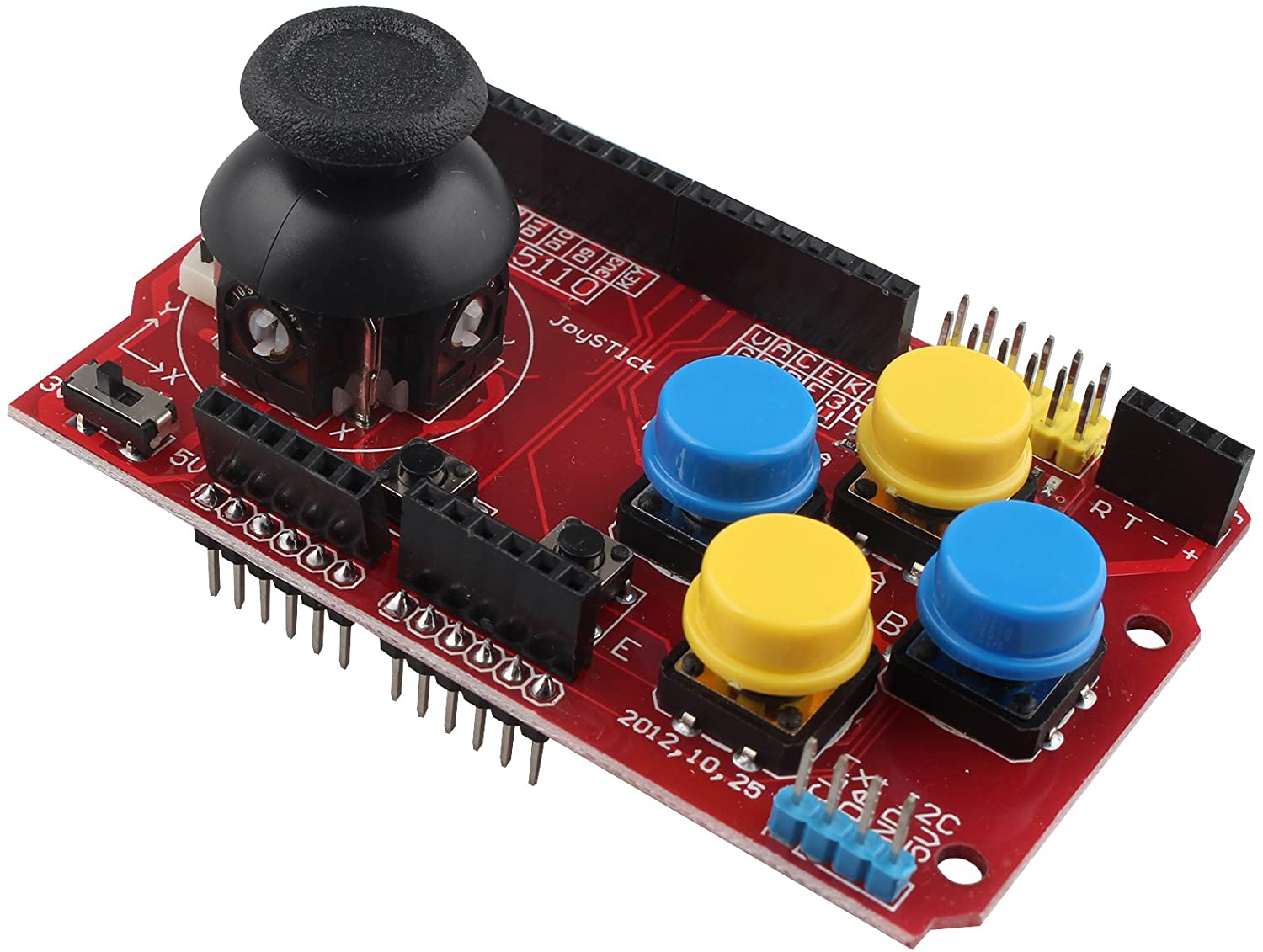

JoyStick Keypad Shield Expansion Board for Arduino
JoyStick Keypad Shield Expansion Board for Arduino
Couldn't load pickup availability
JoyStick Keypad Shield Expansion Board Game joystick Simulation Keyboard and Mouse Function Compatible with Arduino Nrf24l01 5110 Lcd I2c IIC
Feature:
Name: expansion board
This unit have Nokia 5110 LCD interface and nRF24L01 interface
Suitable for all version of arduino Main board, 2009 , UNO, mega 1280, mega 2560
Five momentary push buttons (4+ joystick select button, just like the playstation 3 analog stick push button)
Add I2C communication interface, easy connect with I2C devices
Easy and convenient to install/operate
Packing List:

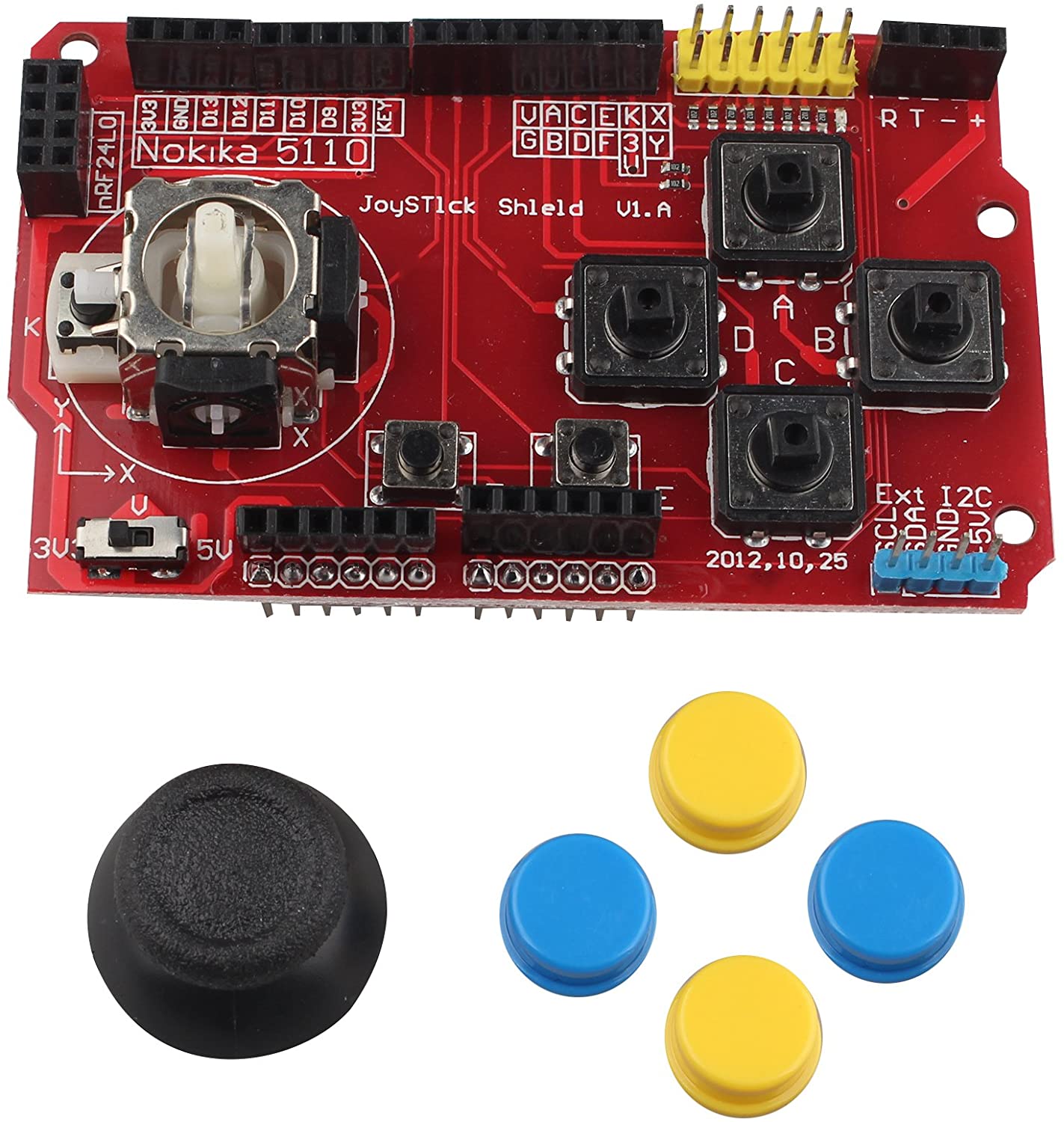

1*JoyStick Expansion Board
Test code is as follows:
int FirstShotX , FirstShotY;
void setup()
{
for(int i=0; i<19; i++)
{
pinMode(i, INPUT);
digitalWrite(i, 1);
}
Serial.begin(9600);
FirstShotX = 0;
FirstShotY = 0;
}
void loop(){
int i, someInt, flag = 0;
for(i=4; i<11; i++)
http://keyes-arduino.taobao.com
{
someInt = digitalRead(i);
if(someInt == 0)
{
flag =1;
break;
}
}
if(flag == 1)
{
switch(i)
{
case 4: Serial.println("--------> Button A"); break;
case 5: Serial.println("--------> Button B"); break;
case 6: Serial.println("--------> Button C"); break;
case 7: Serial.println("--------> Button D"); break;
case 8: Serial.println("--------> Button E"); break;
case 9: Serial.println("--------> Button F"); break;
case 10: Serial.println("--------> Button KEY"); break;
default: break;
}
flag=0;
}
int sensorValue = analogRead(A0);
if(FirstShotX == 0)
{
FirstShotX = sensorValue;
Serial.print("FirstShotX = ");
Serial.println(FirstShotX);
}
Serial.print("X = ");
Serial.println(sensorValue - FirstShotX);
sensorValue = analogRead(A1);
if(FirstShotY == 0)
{
FirstShotY = sensorValue;
Serial.print("FirstShotY = ");
Serial.println(FirstShotY);
}
Serial.print("Y = ");
Serial.println(sensorValue - FirstShotY);
http://keyes-arduino.taobao.com
delay(200);
}
