特性
· 板載4個USB擴展口，相容USB2.0/1.1傳輸
· 板載USB to UART，方便Raspberry Pi進行串口調試
· 板載多個指示燈，方便查看電源、USB to UART和USB擴展介面的工作狀態
參數
· 工作電壓： 5V
· 產品尺寸：65mm × 30mm
· 固定孔通徑：3.0mm
Overview

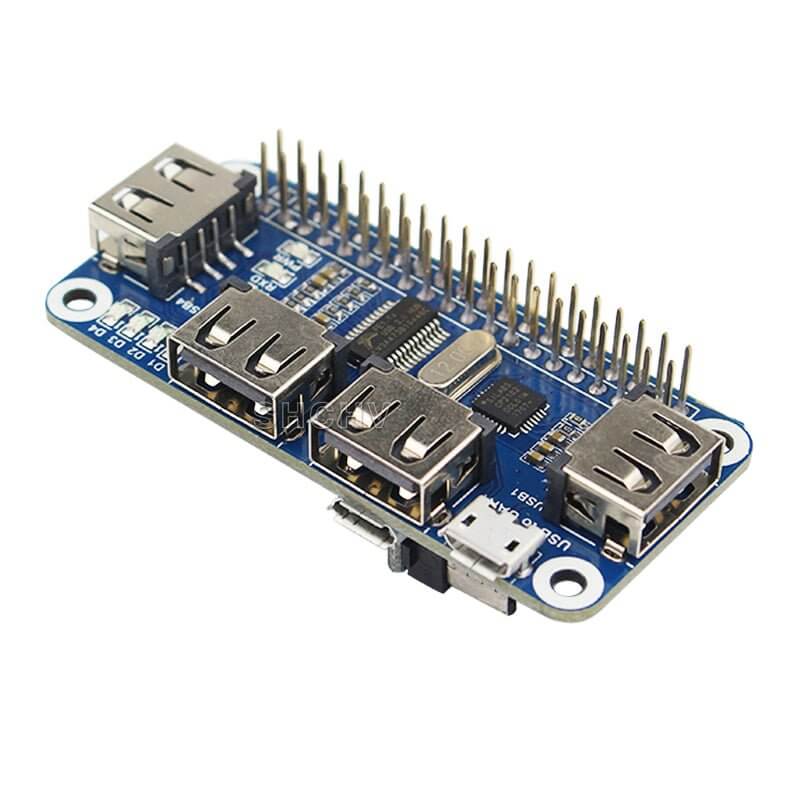

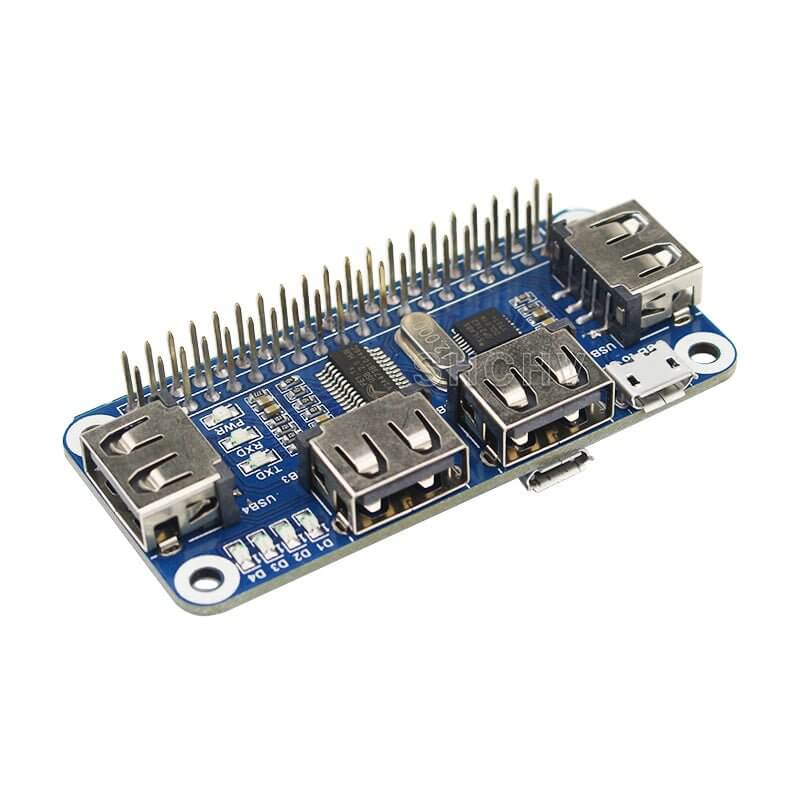

This is a 4 port USB hub for Raspberry Pi, provides more USB capability to your Pi, what's more, it features USB to UART converter for easy serial communication.
It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.
USB HUB HAT Features
- 4 USB Ports, compatible with USB2.0/1.1
- Onboard USB to UART, with enable / disable switch, convenient for Raspberry Pi serial debugging and avoiding conflict
- Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port

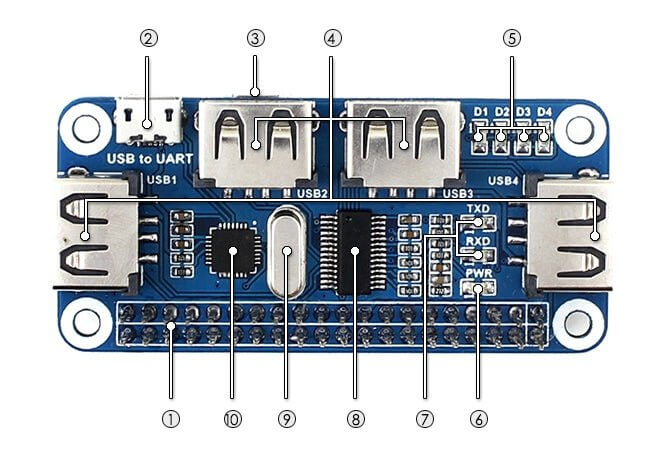

- Raspberry Pi GPIO interface:for connecting Raspberry Pi
- USB to UART:for controlling the Raspberry Pi via serial terminal
- USB HUB interface (bottom):for connecting the HUB to the Raspberry Pi USB port
- Raspberry Pi Zero / Zero W / Zero WH: connected viaMicro USB connector
- Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected viaMicro USB cable
- USB extended ports:USB1~USB4
- USB port indicators:dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
- Power indicator
- USB to UART indicator
- 1S:USB HUB chip
- 12MHz crystal
- CP2102:USB to UART converter
Specifications
- Operating voltage: 5V
- Dimension: 65mm × 30mm
- Mounting hole size: 3.0mm
