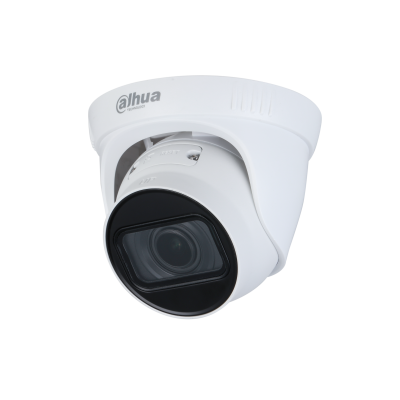

Dahua HDW1431T1 IR Eyeball Network Camera
1 Year Warranty
Feature:
DH-IPC-HDW1431T1-S4 4MP Entry IR Fixed-focal Eyeball Netwok Camera
> 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max. IR distance: 30 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Image Rotation, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
> 12V DC/PoE power support
> IP67, protection

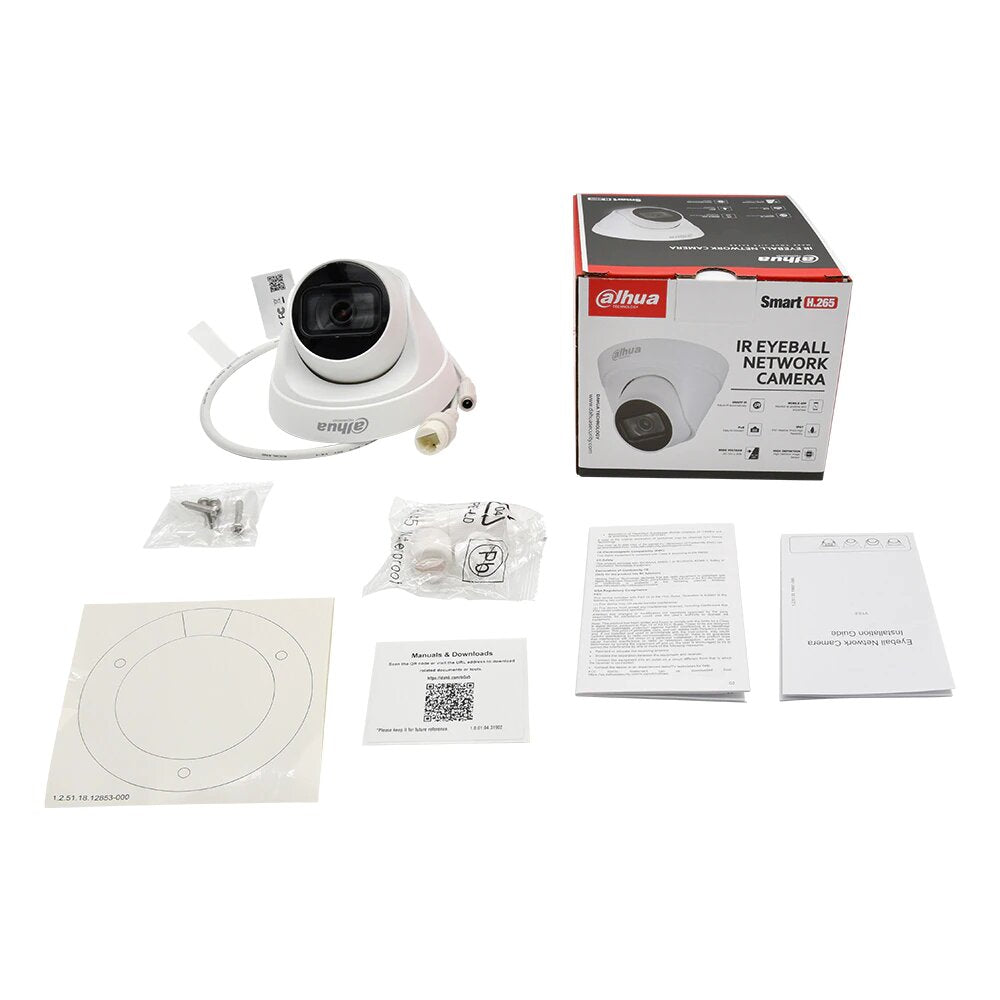

Pack List:
> Dahua original IP camera DH-IPC-HDW1431T1-S4 * 1
> Accessories for IP camera * 1
Camera Details:
- Camera
Image Sensor 1/3"4Megapixel progressive CMOS
Effective Pixels 2688 (H) ×1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.03 Lux @ F2.0
IR Distance 30 m (98.4 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 1
Pan/Tilt/Rotation Range Horizontal: 0°–355°
Vertical: 0°–78°
Rotation: 0°–360°
- Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
3.6 mm
Max. Aperture F2.0
Field of View 2.8 mm: Horizontal: 93°
Vertical: 53°
Diagonal: 111°
3.6 mm: Horizontal: 81°
Vertical: 44°
Diagonal: 95°
Iris Type Fixed aperture
Close Focus Distance 2.8 mm: 0.8 m (2.6 ft)
3.6 mm: 1.4 m (4.6 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 50.0m(183.7 ft) 22.4m(73.5 ft) 11.2m(36.7 ft) 15.1m(18.4 ft)
3.6mm 80.0m(262.5 ft) 32.0m(105.0 ft) 16.0m(52.5 ft) 8.0m(26.2 ft)
- Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main Stream:
2688 × 1520 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
Sub Stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1 fps–20/30 fps)
Stream Capability 2 streams
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520resolution.)
Mirror Yes
Privacy Masking 4 areas
- Network
Network RJ-45 (10/100 Base-T)
Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
User/Host 20
Edge Storage Dahua Cloud; FTP; SFTP; NAS
Browser IE, Chrome, Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
- Certification
Certifications CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
- Power
Power Supply 12V DC/POE (802.3af)
Power Consumption < 5.1W
- Environment
Operating Conditions -40°C to +55°C (-40°F to +131°F) /less than≤95%
Strorage Conditions -40°C to +60°C (-40°F to +140°F)
Ingress Protection IP67
- Structure
Casing Metal + plastic
Dimensions 85.5 mm × Φ109 mm (3.4" × Φ4.3")
Net Weight 0.25 kg (0.6 lb)
Gross Weight 0.37 kg (0.8 lb)
Question: How default IP and login pass for connection to Camera
Answer: 192.168.1.108. User name is ‘admin' and Password no set. You can set it once you're logged in.
